80 Series

Jinlv offers over 100+ various standard profiles 20/40/45/80 etc.
Availability:
  • JINLV_01
  • 204055



80 series Industrial aluminum profiles

jinlv_05

80 series means the section size is 80mm,Jinlv offers 8080,80120,80160 with 8mm 10mm slot.

8mm slot width Aluminum profiles

It’s widely used in making aluminum frame, Surface treated with positive oxidation, Beautiful and corrosion resistant, usually use bolt for inside connection. It’s one of profiles which is most widely used in industrial framework.

10mm slot width Aluminum profiles

It is suitable for frame and structure with super large stress and high strength. It is widely used in automobile, industrial automation, industrial module structure and other special fields

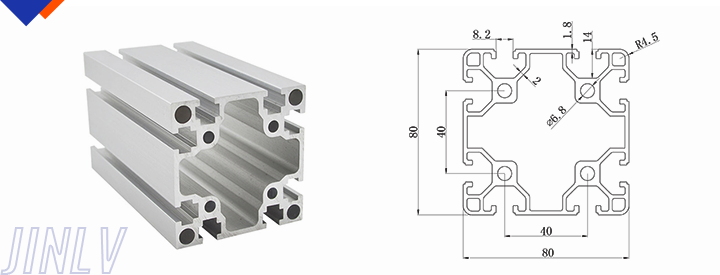

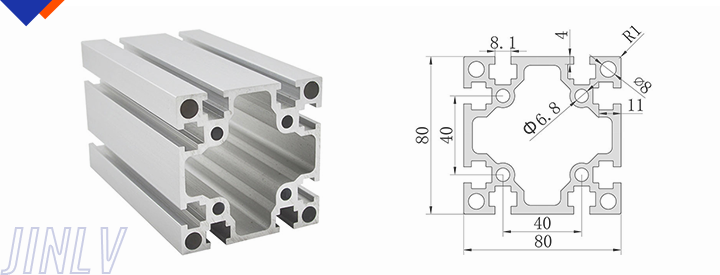

JL-8-8080EA

jinlv_05

Material Aluminium(6063-T5)
Weight 5.4kg/M
Length 6.02m can cut in length
Mass of Inertia Lx:128.65cm4   ly:128.65cm4
Section Modulus Zx:30.96cm3  Zy:30.96cm3
Order No. JL-8-8080EA

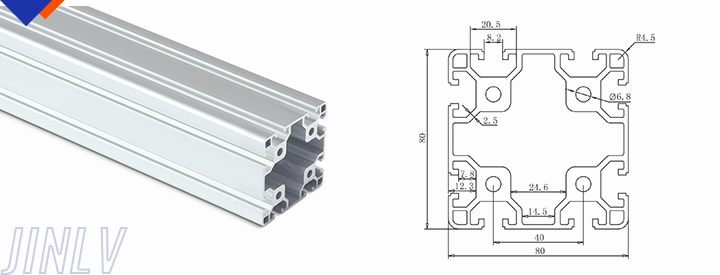

JL-10-8080EB

jinlv_05

Material Aluminium(6063-T5)
Weight 5.25kg/M
Length 6.02m can cut in length
Mass of Inertia Lx:128.65cm4   ly:128.65cm4
Section Modulus Zx:30.96cm3  Zy:30.96cm3
Order No. JL-8-8080EB

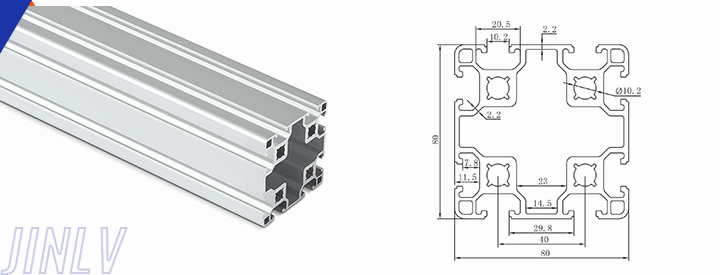

JL-8-8080EL

jinlv_05

Material Aluminium(6063-T5)
Weight 4.43kg/M
Length 6.02m can cut in length
Mass of Inertia Lx:1000cm4   ly:100cm4
Section Modulus Zx:25cm3  Zy:25cm3
Order No. JL-8-8080EL

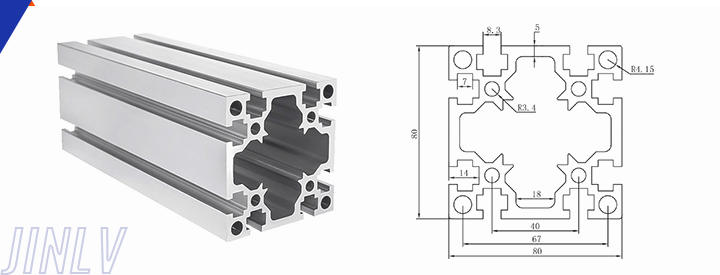

JL-8-8080EW

jinlv_05

Material Aluminium(6063-T5)
Weight 8.549kg/M
Length 6.02m can cut in length
Mass of Inertia Lx:185cm4   ly:185cm4
Section Modulus Zx:46.25cm3  Zy:46.25cm3
Order No. JL-8-8080EW

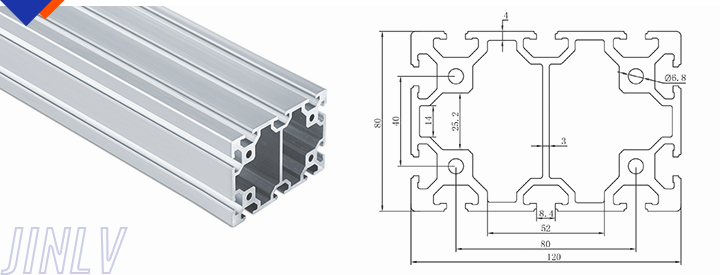

JL-8-80120E

jinlv_05

Material Aluminium(6063-T5)
Weight 9.24kg/M
Length 6.02m can cut in length
Mass of Inertia Lx:130.1cm4   ly:130.1cm4
Section Modulus Zx:32.1cm3  Zy:32.1cm3
Order No. JL-8-80120E

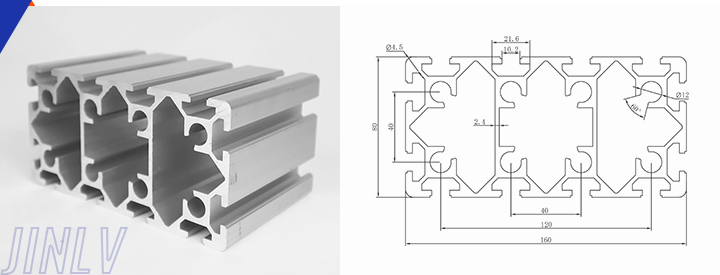

JL-10-80160E

jinlv_05

Material Aluminium(6063-T5)
Weight 11kg/M
Length 6.02m can cut in length
Mass of Inertia Lx:140cm4   ly:140cm4
Section Modulus Zx:32cm3  Zy:33cm3
Order No. JL-8-80160E

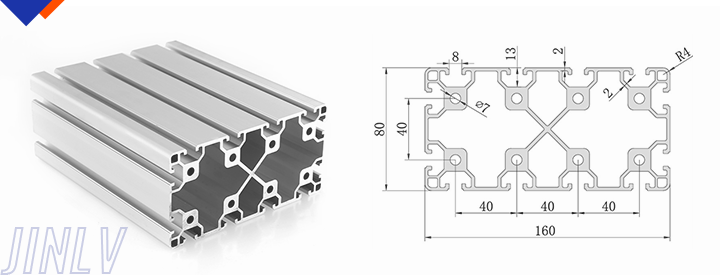

JL-8-80160EB

jinlv_05

Material Aluminium(6063-T5)
Weight 10.26kg/M
Length 6.02m can cut in length
Mass of Inertia Lx:766.33cm4   ly:217.27cm4
Section Modulus Zx:95.79cm3  Zy:54.32cm3
Order No. JL-8-80160EB

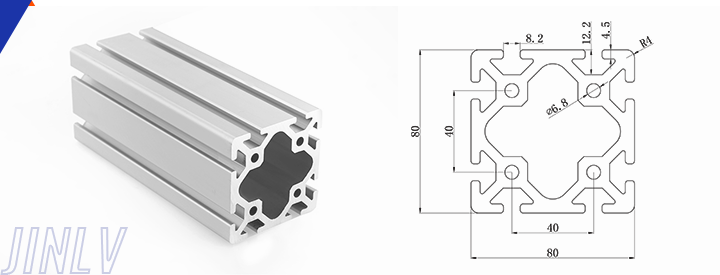

JL-8-8080GA

jinlv_05

Material Aluminium(6063-T5)
Weight 6.2kg/M
Length 6.02m can cut in length
Mass of Inertia Lx:150.3cm4   ly:42.8cm4
Section Modulus Zx:32.2cm3  Zy:16.6cm3
Order No. JL-8-8080GA


JL-8-8080GL

jinlv_05

Material Aluminium(6063-T5)
Weight 6.32kg/M
Length 6.02m can cut in length
Mass of Inertia Lx:146cm4   ly:146cm4
Section Modulus Zx:36.5cm3  Zy:36.5cm3
Order No. JL-8-8080GL
