PRODUCTS

20 Series

Jinlv offers over 100+ various standard profiles 20/40/45/80 etc.
Availability:
  • JINLV_01
  • 204055



20 Series Products

jinlv_05

20 Series means the section height is 20mm,Jinlv offers another section have 40/80/120/160.

Suitable for light structure frame combination. Such as hood, instrument rack, display bar and so on, concise and elegant,It’s usually use M6X16 high strength bolts to internal connection.

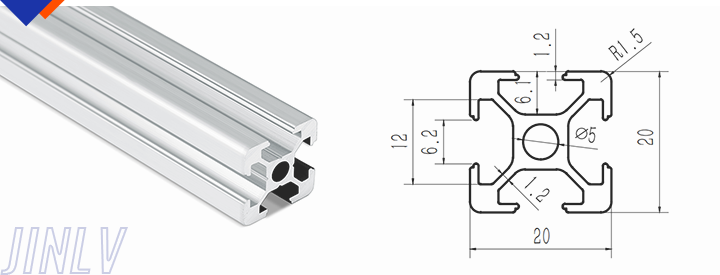

JL-6-2020E

jinlv_05

Material Aluminium(6063-T5)
Weight 0.55kg/M
Length 6.02m can cut in length
Mass of Inertia Lx:0.72cm4   ly:0.72cm4
Section Modulus Zx:0.72cm3  Zy:0.72cm3
Order No. JL-6-2020E

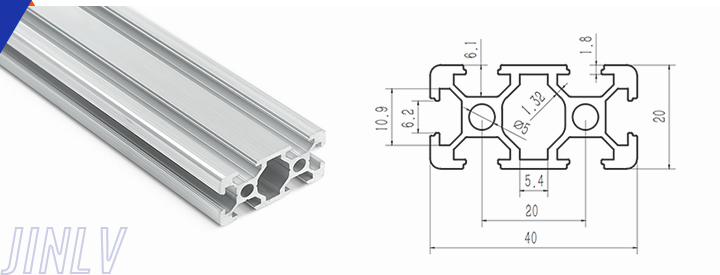

JL-6-2040E

jinlv_05

Material Aluminium(6063-T5)
Weight 1kg/M
Length 6.02m can cut in length
Mass of Inertia Lx:4.64cm4   ly:1.42cm4
Section Modulus Zx:2.32cm3  Zy:1.32cm3
Order No. JL-6-2040E

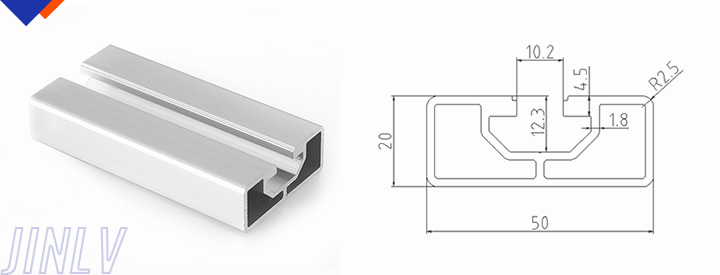

JL-10-2050E

jinlv_05

Material Aluminium(6063-T5)
Weight 1.078kg/M
Length 6.02m can cut in length
Mass of Inertia Lx:4.64cm4   ly:1.42cm4
Section Modulus Zx:2.32cm3  Zy:1.32cm3
Order No. JL-10-2050E

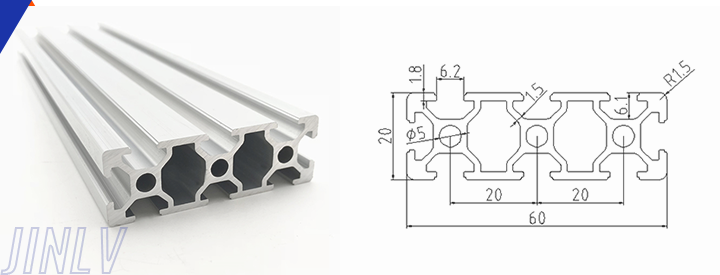

JL-6-2060E

jinlv_05

Material Aluminium(6063-T5)
Weight 1.374kg/M
Length 6.02m can cut in length
Mass of Inertia Lx:14.88cm4   ly:1.8cm4
Section Modulus Zx:4.96cm3  Zy:1.8cm3
Order No. JL-6-2060E

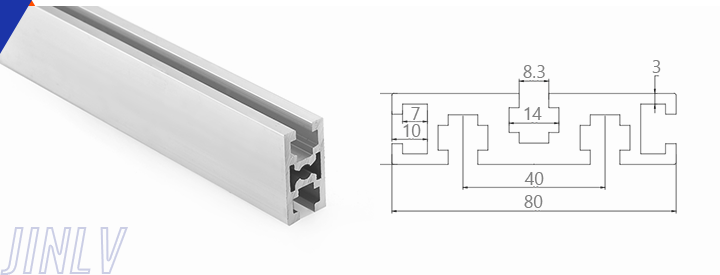

JL-6-2080E

jinlv_05

Material Aluminium(6063-T5)
Weight 2.00kg/M
Length 6.02m can cut in length
Mass of Inertia Lx:3.35cm4   ly:3.35cm4
Section Modulus Zx:2.82cm3  Zy:2.82cm3
Order No. JL-6-2080E

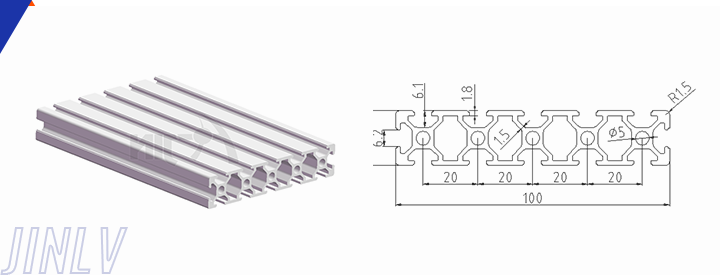

JL-6-20100E

jinlv_05

Material Aluminium(6063-T5)
Weight 2.225kg/M
Length 6.02m can cut in length
Mass of Inertia Lx:63cm4   ly:3cm4
Section Modulus Zx:12.6cm3  Zy:3cm3
Order No. JL-6-20100E

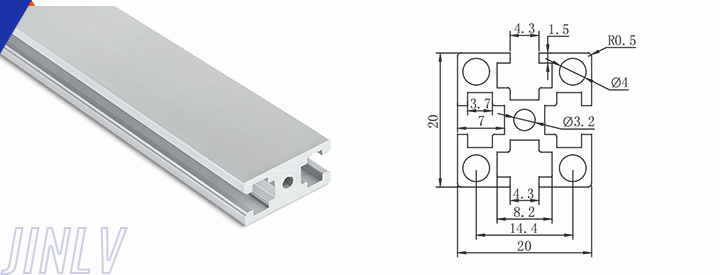

JL-4-2020G

jinlv_05

Material Aluminium(6063-T5)
Weight 0.55kg/M
Length 6.02m can cut in length
Mass of Inertia Lx:0.72cm4   ly:0.72cm4
Section Modulus Zx:0.72cm3  Zy: 0.72cm3
Order No. JL-4-2020G


JL-8-2040GA

jinlv_05

Material Aluminium(6063-T5)
Weight 1.38kg/M
Length 6.02m can cut in length
Mass of Inertia Lx:1.42cm4   ly:1.42cm4
Section Modulus Zx:1.05cm3  Zy: 1.05cm3
Order No. JL-8-2040GA

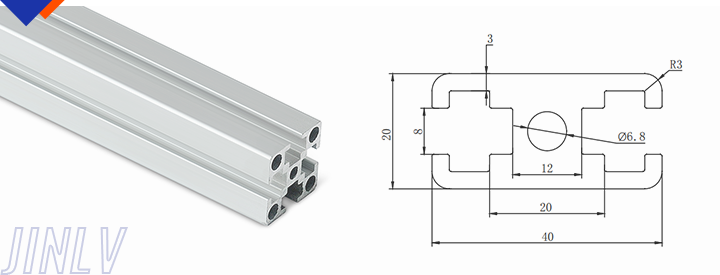

JL-4-2040GB

jinlv_05

Material Aluminium(6063-T5)
Weight 0.95kg/M
Length 6.02m can cut in length
Mass of Inertia Lx:2.5cm4   ly:2.5cm4
Section Modulus Zx:2.0cm3  Zy: 2.0cm3
Order No. JL-4-2040GB


JL-8-2040GC

jinlv_05

Material Aluminium(6063-T5)
Weight 1.235kg/M
Length 6.02m can cut in length
Mass of Inertia Lx:5.1cm4   ly:1.96cm4
Section Modulus Zx:2.55cm3  Zy: 1.96cm3
Order No. JL-8-2040GC


JL-8-2080G

jinlv_05

Material Aluminium(6063-T5)
Weight 2.7kg/M
Length 6.02m can cut in length
Mass of Inertia Lx:14.2cm4   ly:14.2cm4
Section Modulus Zx:10.5cm3  Zy: 10.5cm3
Order No. JL-8-2080G

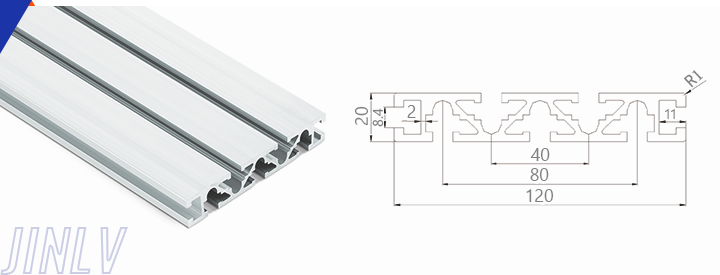

JL-8-20120G

jinlv_05

Material Aluminium(6063-T5)
Weight 3.08kg/M
Length 6.02m can cut in length
Mass of Inertia Lx:2.6cm4   ly:35.9cm4
Section Modulus Zx:2.6cm3  Zy:9.0cm3
Order No. JL-8-20120G
