30 Series Standard Aluminium Profile
30 Series means the section height is 30mm,Jinlv offers another section have 30/60/90/120.
Normally 30 series with 8 mm slot width Aluminum profiles,It is suitable for frame structure with high stress and strength. The shape is round corner transition and the surface is treated by positive oxidation,Beautiful and corrosion.It’s usually useM8X20 bolt Spring faster and Spring faster for inside connection. It’s one of profiles which is most widely used in industrial framework.

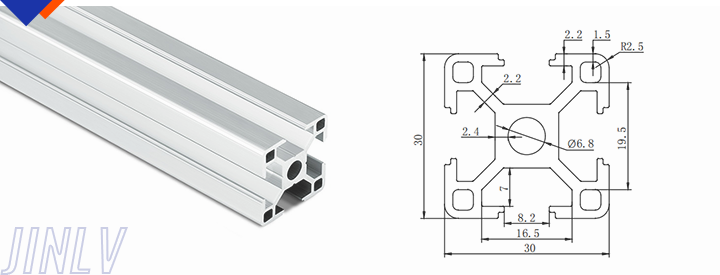

JL-8-3030EA
Material | Aluminium(6063-T5) | |
Weight | 1.05kg/M | |
Length | 6.02m can cut in length | |
Mass of Inertia | Lx:2.85cm4 ly:2.85cm4 | |
Section Modulus | Zx:1.8cm3 Zy:1.8cm3 | |
Order No. | JL-8-3030EA |
JL-8-3030EL
Material | Aluminium(6063-T5) | |
Weight | 0.95kg/M | |
Length | 6.02m can cut in length | |
Mass of Inertia | Lx:2.85cm4 ly:2.85cm4 | |
Section Modulus | Zx:1.8cm3 Zy:1.8cm3 | |
Order No. | JL-8-3030EL |
JL-8-3030EB
Material | Aluminium(6063-T5) | |
Weight | 0.95kg/M | |
Length | 6.02m can cut in length | |
Mass of Inertia | Lx:2.85cm4 ly:2.85cm4 | |
Section Modulus | Zx:1.8cm3 Zy:1.8cm3 | |
Order No. | JL-8-3030EB |
JL-8-3030EC
Material | Aluminium(6063-T5) | |
Weight | 1.18kg/M | |
Length | 6.02m can cut in length | |
Mass of Inertia | Lx:2.85cm4 ly:2.85cm4 | |
Section Modulus | Zx:1.8cm3 Zy:1.8cm3 | |
Order No. | JL-8-3030EC |
JL-8-3030ED
Material | Aluminium(6063-T5) | |
Weight | 1.137kg/M | |
Length | 6.02m can cut in length | |
Mass of Inertia | Lx:3.16cm4 ly:2.81cm4 | |
Section Modulus | Zx:2.1cm3 Zy:1.87cm3 | |
Order No. | JL-8-3030ED |
JL-8-3030EE
Material | Aluminium(6063-T5) | |
Weight | 1.203kg/M | |
Length | 6.02m can cut in length | |
Mass of Inertia | Lx:3.2cm4 ly:3.16cm4 | |
Section Modulus | Zx:2.13cm3 Zy:2.1cm3 | |
Order No. | JL-8-3030EE |

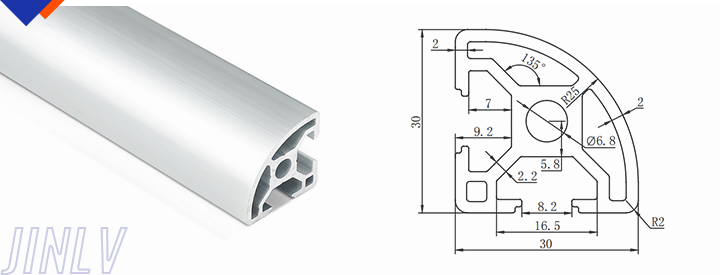

JL-8-3030ER
Material | Aluminium(6063-T5) | |
Weight | 1.1kg/M | |
Length | 6.02m can cut in length | |
Mass of Inertia | Lx:2.52cm4 ly:2.52cm4 | |
Section Modulus | Zx:1.51cm3 Zy:1.51cm3 | |
Order No. | JL-8-3030ER |
JL-8-3030EG
Material | Aluminium(6063-T5) | |
Weight | 1.0kg/M | |
Length | 6.02m can cut in length | |
Mass of Inertia | Lx:2.85cm4 ly:2.85cm4 | |
Section Modulus | Zx:1.8cm3 Zy:1.8cm3 | |
Order No. | JL-8-3030EG |

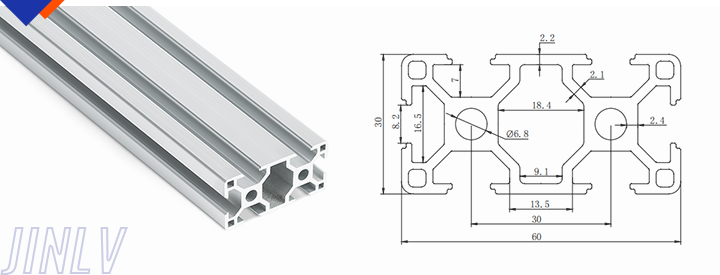

Jl-8-3060E
Material | Aluminium(6063-T5) | |
Weight | 1.85kg/M | |
Length | 6.02m can cut in length | |
Mass of Inertia | Lx:19.8cm4 ly:5.15cm4 | |
Section Modulus | Zx:6.60cm3 Zy:3.30cm3 | |
Order No. | JL-8-3030ER |
JL-6-3030G
Material | Aluminium(6063-T5) | |
Weight | 1.32kg/M | |
Length | 6.02m can cut in length | |
Mass of Inertia | Lx:3.05cm4 ly:3.05cm4 | |
Section Modulus | Zx:2.4cm3 Zy:2.4cm3 | |
Order No. | JL-6-3030G |
JL-6-3030GL
Material | Aluminium(6063-T5) | |
Weight | 1.32kg/M | |
Length | 6.02m can cut in length | |
Mass of Inertia | Lx:3.05cm4 ly:3.05cm4 | |
Section Modulus | Zx:2.4cm3 Zy:2.4cm3 | |
Order No. | JL-6-3030GL |
JL-6-3060G
Material | Aluminium(6063-T5) | |
Weight | 2.1kg/M | |
Length | 6.02m can cut in length | |
Mass of Inertia | Lx:19.8cm4 ly:5.15cm4 | |
Section Modulus | Zx:6.6cm3 Zy:3.3cm3 | |
Order No. | JL-6-3060G |

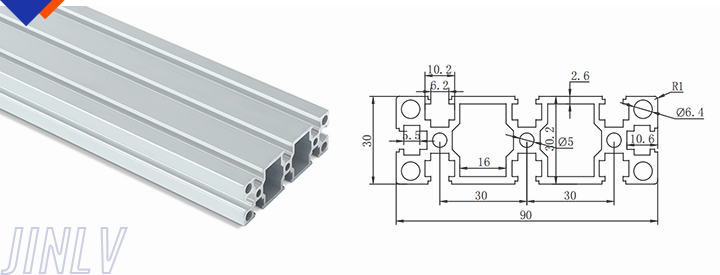

JL-6-3090G
Material | Aluminium(6063-T5) | |
Weight | 3.24kg/M | |
Length | 6.02m can cut in length | |
Mass of Inertia | Lx:22.8cm4 ly:7.2cm4 | |
Section Modulus | Zx:4.3cm3 Zy:4.3cm3 | |
Order No. | JL-6-3090GL |
