45 Series

Jinlv offers over 100+ various standard profiles 20/40/45/80 etc.
Availability:
  • JINLV_01
  • 204055



45 series Industrial aluminum profiles

jinlv_05

45 series means the section size is 45, Jinlv offers 4545 and 4560/90, with 10mm slot. slot.It’s widely used in high stress and strength heavy load frame making, It’s usually use M12X30 extra strong bolt for inside connection,tight,reliable,strong.

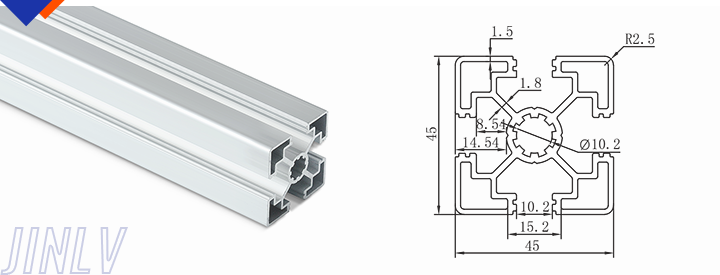

JL-10-4545EA

jinlv_05

Material Aluminium(6063-T5)
Weight 1.82kg/M
Length 6.02m can cut in length
Mass of Inertia Lx:13.65cm4   ly:13.65cm4
Section Modulus Zx:5.85cm3  Zy:5.85cm3
Order No. JL-10-4545EA

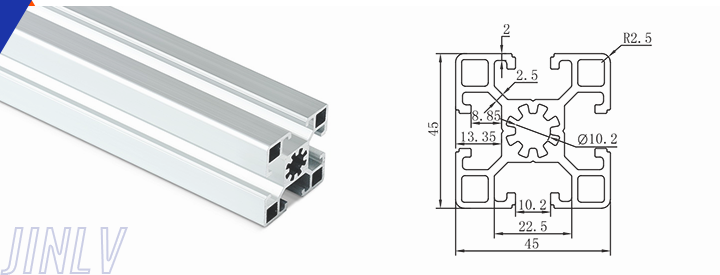

JL-10-4545EB

jinlv_05

Material Aluminium(6063-T5)
Weight 2.0kg/M
Length 6.02m can cut in length
Mass of Inertia Lx:15.02cm4   ly:15.02cm4
Section Modulus Zx:6.35cm3  Zy:6.35cm3
Order No. JL-10-4545EB

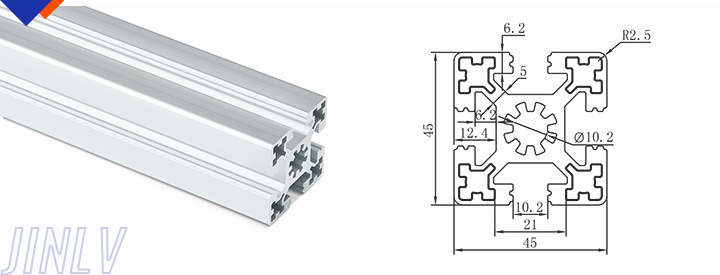

JL-10-4545EC

jinlv_05

Material Aluminium(6063-T5)
Weight 2.4kg/M
Length 6.02m can cut in length
Mass of Inertia Lx:15.82cm4   ly:15.82cm4
Section Modulus Zx:6.95cm3  Zy:6.95cm3
Order No. JL-10-4545EC

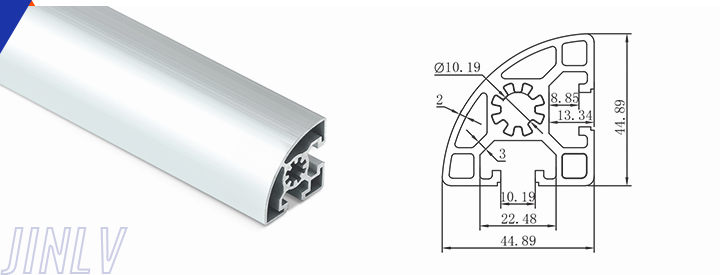

JL-10-4545ER

jinlv_05

Material Aluminium(6063-T5)
Weight 1.85kg/M
Length 6.02m can cut in length
Mass of Inertia Lx:11.42cm4   ly:11.42cm4
Section Modulus Zx:4.61cm3  Zy:4.61cm3
Order No. JL-10-4545ER

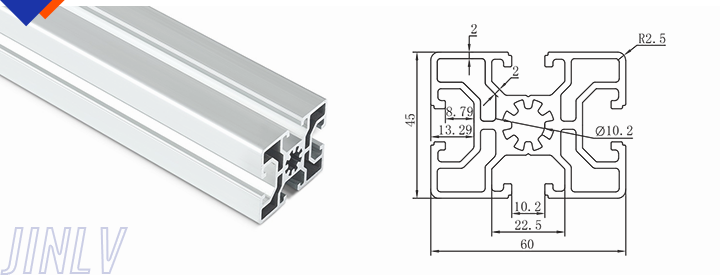

JL-10-4560E

jinlv_05

Material Aluminium(6063-T5)
Weight 2.75kg/M
Length 6.02m can cut in length
Mass of Inertia Lx:27.62cm4   ly:15.16cm4
Section Modulus Zx:9.6cm3  Zy:7.11cm3
Order No. JL-10-4560E

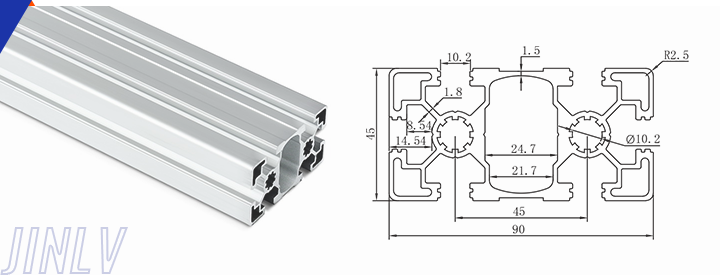

JL-10-4590EA

jinlv_05

Material Aluminium(6063-T5)
Weight 3.6kg/M
Length 6.02m can cut in length
Mass of Inertia Lx:97.52cm4   ly:24.85cm4
Section Modulus Zx:20.96cm3  Zy:10.35cm3
Order No. JL-10-4590EA

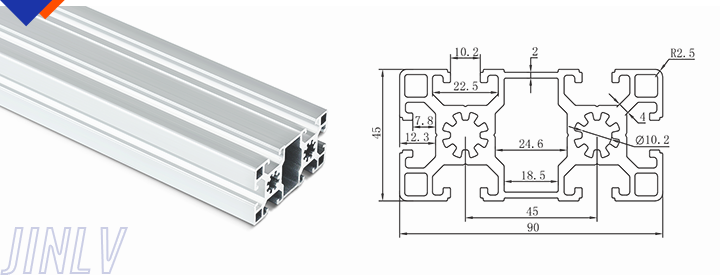

JL-10-4590EB

jinlv_05

Material Aluminium(6063-T5)
Weight 3.9kg/M
Length 6.02m can cut in length
Mass of Inertia Lx:100.8cm4   ly:26.85cm4
Section Modulus Zx:22.96cm3  Zy:12.15cm3
Order No. JL-10-4590EB

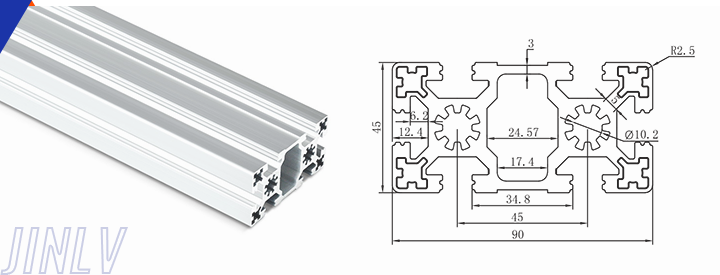

JL-10-4590EC

jinlv_05

Material Aluminium(6063-T5)
Weight 4.6kg/M
Length 6.02m can cut in length
Mass of Inertia Lx:111.8cm4   ly:28.85cm4
Section Modulus Zx:25.96cm3  Zy:15.75cm3
Order No. JL-10-4590EC
