38 Series

Jinlv offers over 100+ various standard profiles 20/40/45/80 etc.
Availability:
  • JINLV_01
  • 204055



8 mm slot width Aluminum profiles

jinlv_05

It is suitable for frame structure with high stress and strength. The shape is round corner transition and the surface is treated by positive oxidation,Beautiful and corrosion.It’s usually use M8X20 bolt Spring faster and Spring faster for inside connection. It’s one of profiles which is most widely used in industrial framework.

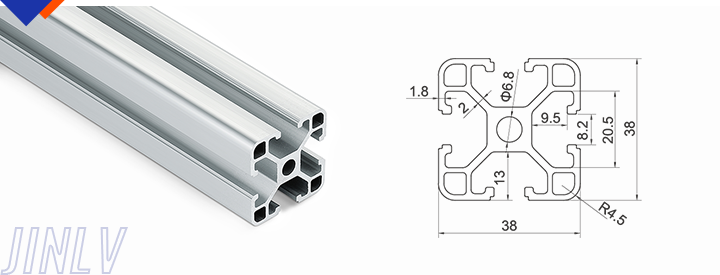

JL-8-3838E

jinlv_05

Material Aluminium(6063-T5)
Weight 1.44kg/M
Length 6.02m can cut in length
Mass of Inertia Lx:8.3cm4   ly:4.8cm4
Section Modulus Zx:3.1cm3  Zy:1.9cm3
Order No. JL-8-3838E
