90 Series

90 series means the section size is 90mm,Jinlv offers 9090 with 10mm slot.
Availability:
  • JINLV_01
  • 204055



90 series Industrial aluminum profiles

jinlv_05

90 series means the section size is 90mm,Jinlv offers 9090 with 10mm slot.

10mm slot width Aluminum profiles

It is suitable for frame and structure with super large stress and high strength. It is widely used in automobile, industrial automation, industrial module structure and other special fields.

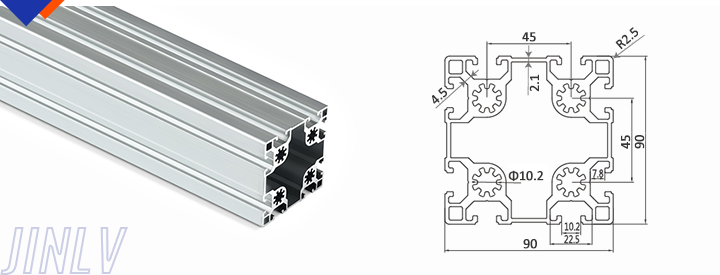

JL-10-9090EA

jinlv_05

Material Aluminium(6063-T5)
Weight 6.9kg/M
Length 6.02m can cut in length
Mass of Inertia Lx:191.2cm4   ly:191.2cm4
Section Modulus Zx:42.5cm3  Zy:42.5cm3
Order No. JL-10-9090EA

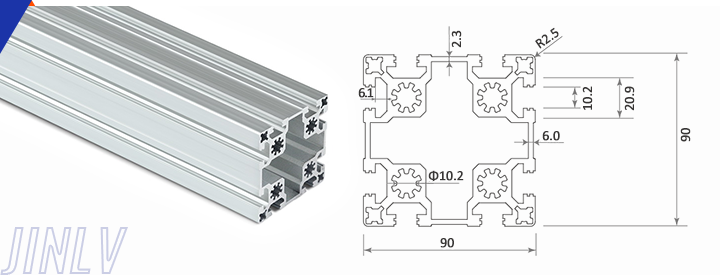

JL-10-9090EB

jinlv_05

Material Aluminium(6063-T5)
Weight 7.5kg/M
Length 6.02m can cut in length
Mass of Inertia Lx:206.25cm4   ly:206.25cm4
Section Modulus Zx:45.5cm3  Zy:45.5cm3
Order No. JL-10-9090EB
