50 series Industrial aluminum profiles
50 series means the section size is 50mm, Jinlv offers 5050 and 50100, with 8mm and 10mm slot. Slot.It is suitable for frame structure with high stress and strength. The shape is round corner transition and the surface is treated by positive oxidation,Beautiful and corrosion.It’s usually use M8X20 bolt Spring faster and Spring faster for inside connection. It’s one of profiles which is most widely used in industrial framework.

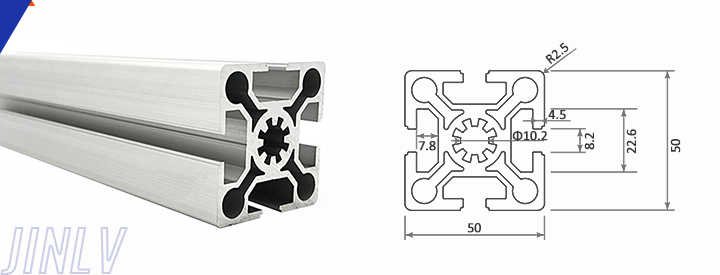

JL-10-5050EA
Material | Aluminium(6063-T5) | |
Weight | 2.91kg/M | |
Length | 6.02m can cut in length | |
Mass of Inertia | Lx:48.6cm4 ly:20.2cm4 | |
Section Modulus | Zx:14.6cm3 Zy:7.3cm3 | |
Order No. | JL-10-5050EA |

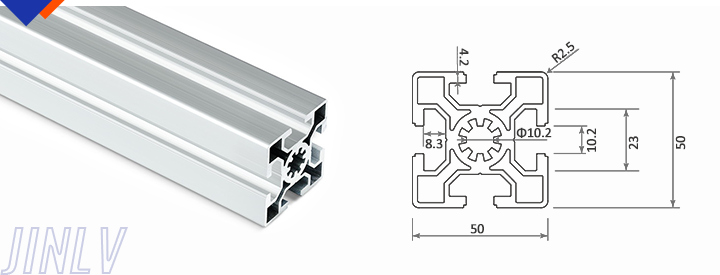

JL-8-5050EB
Material | Aluminium(6063-T5) | |
Weight | 3.55kg/M | |
Length | 6.02m can cut in length | |
Mass of Inertia | Lx:25.8cm4 ly:25.8cm4 | |
Section Modulus | Zx:10.3cm3 Zy:10.3cm3 | |
Order No. | JL-8-5050EB |

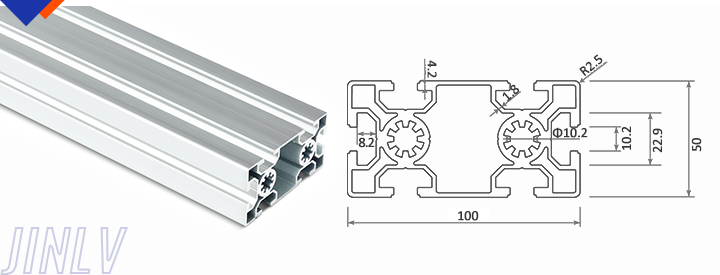

JL-8-50100EA
Material | Aluminium(6063-T5) | |
Weight | 4.8kg/M | |
Length | 6.02m can cut in length | |
Mass of Inertia | Lx:165.15cm4 ly:46.21cm4 | |
Section Modulus | Zx:36.15cm3 Zy:18.23cm3 | |
Order No. | JL-8-50100EA |
JL-10-50100EB
Material | Aluminium(6063-T5) | |
Weight | 6.2kg/M | |
Length | 6.02m can cut in length | |
Mass of Inertia | Lx:163.65cm4 ly:44.91cm4 | |
Section Modulus | Zx:32.75cm3 Zy:17.03cm3 | |
Order No. | JL-10-50100EB |
JL-8-5050G
Material | Aluminium(6063-T5) | |
Weight | 2.8kg/M | |
Length | 6.02m can cut in length | |
Mass of Inertia | Lx:17.34cm4 ly:17.34cm4 | |
Section Modulus | Zx:6.936cm3 Zy:6.936cm3 | |
Order No. | JL-8-5050G |
