16 Series

INLV can provide customer sectional dimension from 20*20 to 120*120 industrial aluminum profiles
Availability:
Inquire

  • JINLV_01

  • 204055


Industrial Aluminum Profiles

jinlv_05

JINLV can provide customer sectional dimension from 20*20 to 120*120 industrial aluminum profiles, customer can choose different section dimension according Requirements for load bearing of products. There is always a suitable for you in JINLV.

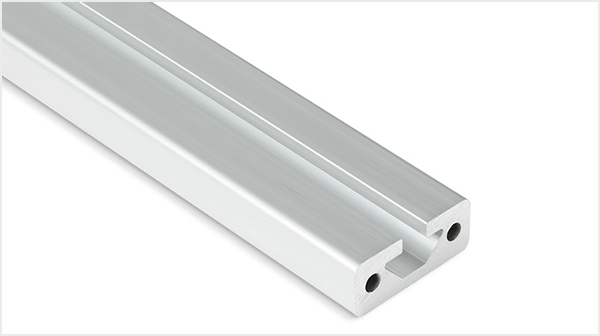

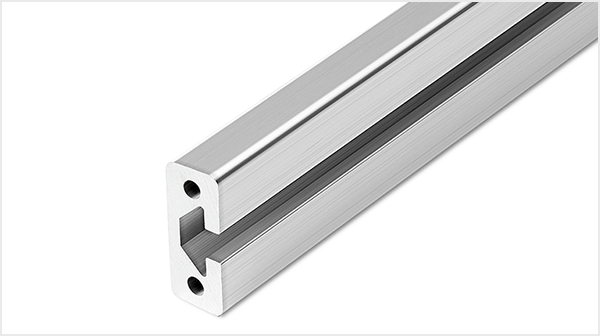

16 Series Aluminium Profile

jinlv_05

Suitable for light structure frame combination.

Such as hood, instrument rack, display bar and so on, concise and elegant.




Parameters

jinlv_05

Material Aluminium(6063-T5)
Weight 1.35kg/M
Length 6.02m can cut in length
Mass of Inertia Lx:0.95cm4   ly:0.95cm4
Section Modulus Zx:1.10cm3  Zy:1.10cm3
Order No. JL-8-1640E


16 series Standard Aluminium Profile and Accessories
