60 Series

60 series means the section size is 60mm, Jinlv offers 6060,6090 and 50100, with 6mm 8mm and 10mm slot.
Availability:
  • JINLV_01
  • 204055

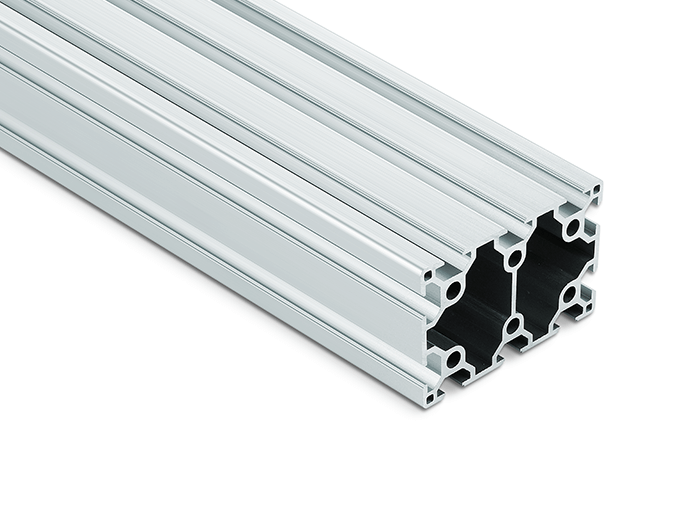

60 series Industrial aluminum profiles

jinlv_05

60 series means the section size is 60mm, Jinlv offers 6060,6090 and 50100, with 6mm 8mm and 10mm slot.

10mm slot width Aluminum profiles

It’s widely used in high stress and strength heavy load frame making, It’s usually use M12X30 extra strong bolt for inside connection,tight,reliable,strong.

8mm slot width Aluminum profiles

It is suitable for frame and structure with super large stress and high strength. It is widely used in automobile, industrial automation, industrial module structure and other special fields.

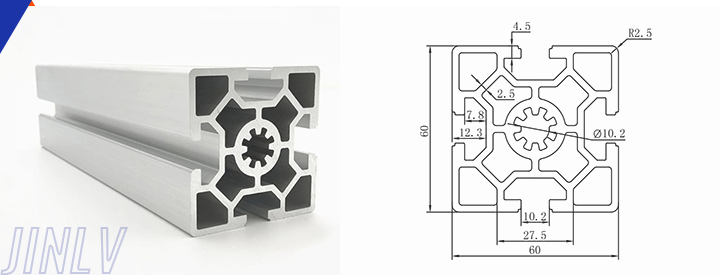

JL-10-6060EA

jinlv_05

Material Aluminium(6063-T5)
Weight 2.76kg/M
Length 6.02m can cut in length
Mass of Inertia Lx:37.65cm4   ly:37.65cm4
Section Modulus Zx:19.14cm3  Zy:19.14cm3
Order No. JL-10-6060EA

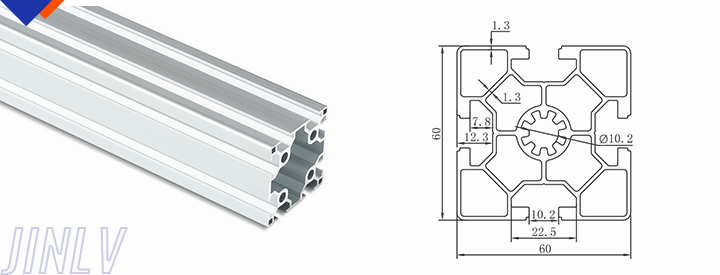

JL-10-6060EB

jinlv_05

Material Aluminium(6063-T5)
Weight 4.3kg/M
Length 6.02m can cut in length
Mass of Inertia Lx:42.02cm4   ly:42.02cm4
Section Modulus Zx:14.65cm3  Zy:14.65cm3
Order No. JL-10-6060EB


JL-8-6060EC

jinlv_05

Material Aluminium(6063-T5)
Weight 2.84kg/M
Length 6.02m can cut in length
Mass of Inertia Lx:103cm4   ly:26.6cm4
Section Modulus Zx:22.4cm3  Zy:11.2cm3
Order No. JL-10-6060EC


JL-8-6090E

jinlv_05

Material Aluminium(6063-T5)
Weight 4.5kg/M
Length 6.02m can cut in length
Mass of Inertia Lx:74.7cm4   ly:252.6cm4
Section Modulus Zx:24.9cm3  Zy:42.1cm3
Order No. JL-8-6090E

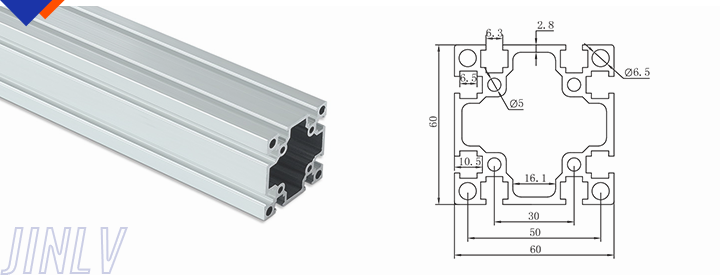

JL-6-6060G

jinlv_05

Material Aluminium(6063-T5)
Weight 3.0kg/M
Length 6.02m can cut in length
Mass of Inertia Lx:112.1cm4   ly:29.7cm4
Section Modulus Zx:24.6cm3  Zy:12.3cm3
Order No. JL-6-6060G
