Nylon Hinge

Jinlv offers over 100+ various standard profiles 20/40/45/80 etc.
Availability:
Inquire

  • JINLV_01

  • 204055



Application

jinlv_05

Use for moveable connection between profiles or plates , the bolt and nuts need to provided separately.


Product Description

jinlv_05


Technical Details

jinlv_05

Material

reinforced nylon

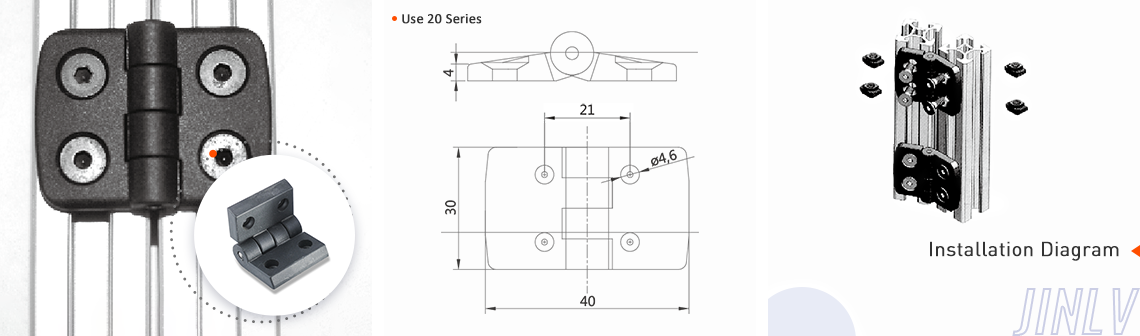

Order No. 20x20 30x30 30x40
JL-H2020-6 JL-H3030-8 JL-H3040-8
40X40 45X45
JL-H4040-8 JL-H4545-10


Product Description

jinlv_05

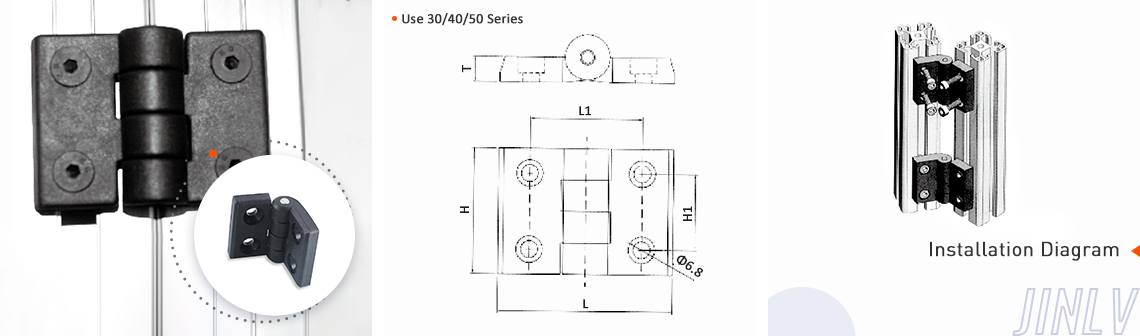

 L
 L1 H H1 T Fittings
JL-H3030-8 52.6 31 44.2 23.6 7.8 PSM6*16/HMM6-8
JL-H3040-8 59 35 44.5 23 7.8 PSM6*16/HMM6-8
JL-H4040-8 61.5
 40.3 49.5 30 10 PSM6*16/HMM6-8
JL-H4545-10 70 45 50 30 10 PSM6*20/HMM6-10


Technical Details

jinlv_05

Order No. JL-H3030-8 JL-H4040-8
JL-H3040-8 JL-H4545-10


Nylon Hinge Standard Aluminium Profile and Accessories
