Application

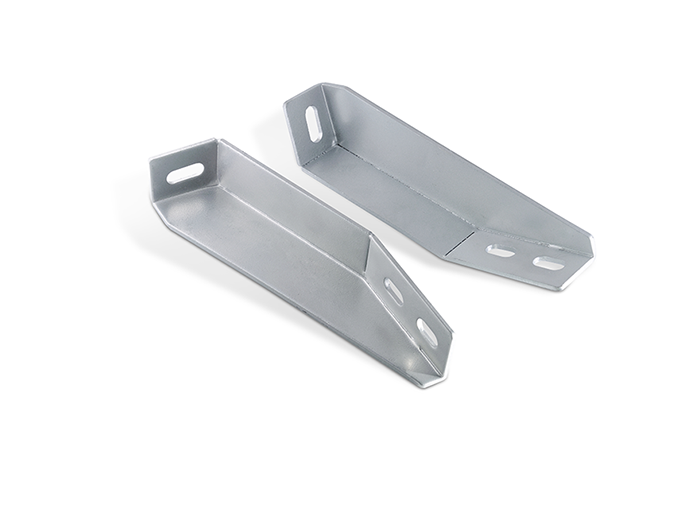

Used for anchor support of profiles. Select bolts and nut blocks for connection according to profile size. Expansion bolts shall be provided separately.
Product Description
| NO. | L | L1 | H | H1 | A | R |
| JL-CE50100 | 80 | 15 | 170 | 25 | 19 | 4 |
| JL-CE90210 | 100 | 20 | 210 | 30 | 20 | 5 |
Technical Details
| NO. | Carbon steel (galvanized surface) | |
| Order No. | 30/40 series | 40/50/60 series |
| JL-CE50100 | JL-CE90210 | |
