Application
It is used for connecting two profiles which are not perpendicular to each other. The connecting bolt and nut block shall be provided separately.

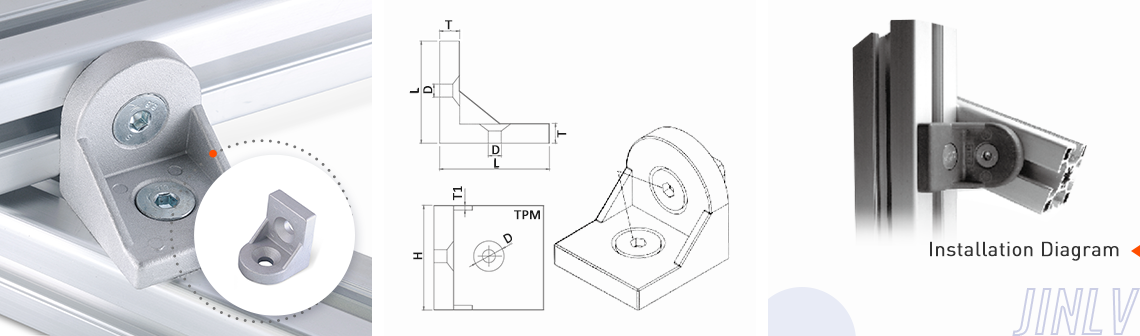

Product Description
| L | H | T | T1 | D | |
| JL-8-ZX3030 | 33 | 30 | 4 | 3.7 | 8.2 |
| JL-8-ZX4040 | 43 | 40 | 7.8 | 3.2 | 8.2 |
| JL-10-ZX4545 | 45 | 45 | 7.8 | 3.8 | 10.2 |
