End Connerctor

Jinlv offers over 100+ various standard profiles 20/40/45/80 etc.
Availability:
  • JINLV_01
  • 204055



Application

jinlv_05

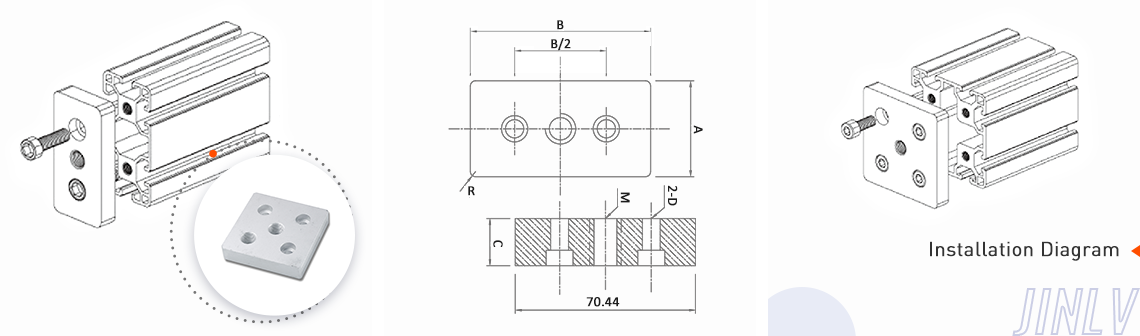

The end connector plate is mainly used for the transition of rectangular and large-size porous square profile when the foot and casters are connected.


Product Description

jinlv_05



A B C M D
JL-DB3060-M10 30 60 15 10 89
JL-DB4080-M12 40 80 15 12 9
JL-DB4590-M12 45 90 15 12 13
JL-DB50100-M16 50 100 15 16 13


Technical Details

jinlv_05

Material Aluminium
Order No. 30X60 60X60-8 40X80
L-DB3060-M10 JL-DB6060-M12 JL-DB4080-M12
45X90 80X80 90X90
JL-DB4590-M12 JL-DB8080-M12 JL-DB9090-M16
50X100 100X100
JL-DB50100-M16 JL-DB100100-M20
