Application

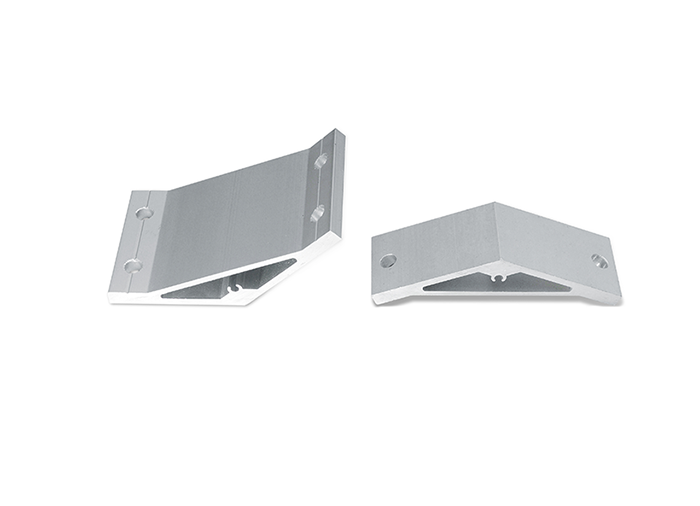

135 degree bracket is formed by cutting the material section from the extruded profile and drilling. The surface is anodized with silver and white (the end face is not oxidized), and the connection strength is high.Good flexibility and general performance, easy to install,mainly use profiles.
Product Description

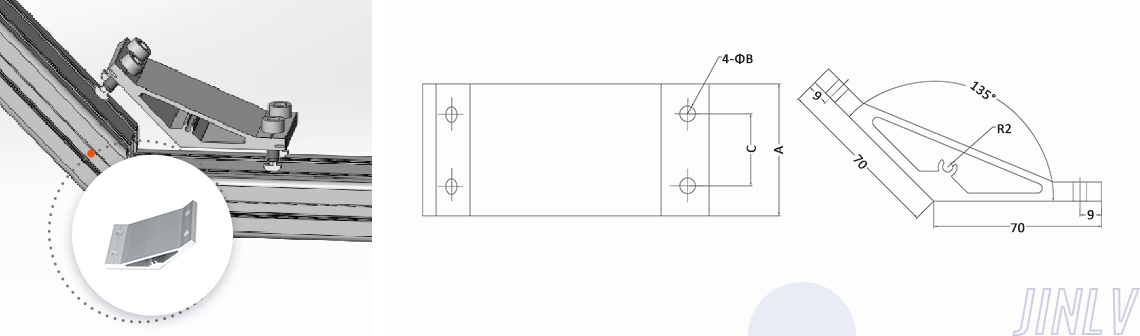

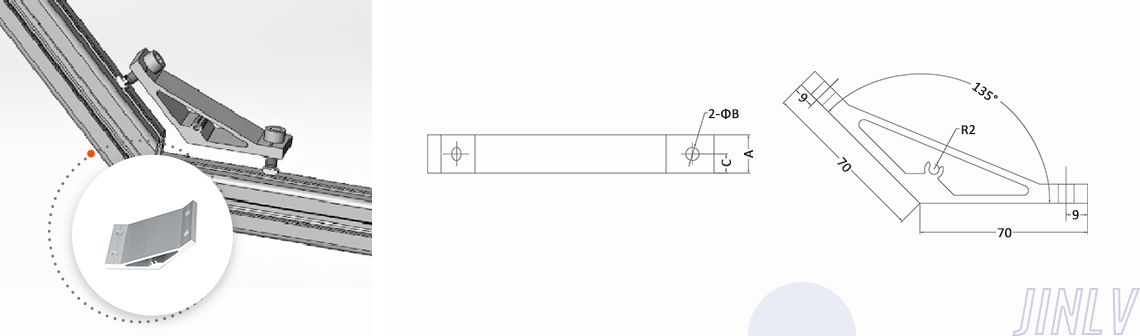

| NO. | model | A | B | C | Order number |
| 1 | 2020 | 16 | 5.5 | 8 | 2020-135 °bracket |
| 2 | 2030 | 27 | 6.5 | 13.5 | 2020-135 °bracket |
| 3 | 3535 | 30 | 8.5 | 15 | 2020-135 °bracket |
| 4 | 4040 | 35 | 6.5 | 17.5 | 2020-135 °bracket |
| 5 | 4545 | 40 | 8.5 | 20 | 2020-135 °bracket |
| 6 | 5050 | 45 | 8.5 | 22.5 | 2020-135 °bracket |
Application
135 degree bracket is formed by cutting the material section from the extruded profile and drilling. The surface is anodized with silver and white (the end face is not oxidized), and the connection strength is high.Good flexibility and general performance, easy to install,mainly use profiles.
Product Description
| NO. | model | A | B | C | Order number |
| 1 | 2020 | 16 | 5.5 | 8 | 2020-135 °bracket |
| 2 | 2030 | 27 | 6.5 | 13.5 | 2020-135 °bracket |
| 3 | 3535 | 30 | 8.5 | 15 | 2020-135 °bracket |
| 4 | 4040 | 35 | 6.5 | 17.5 | 2020-135 °bracket |
| 5 | 4545 | 40 | 8.5 | 20 | 2020-135 °bracket |
| 6 | 5050 | 45 | 8.5 | 22.5 | 2020-135 °bracket |
