Application

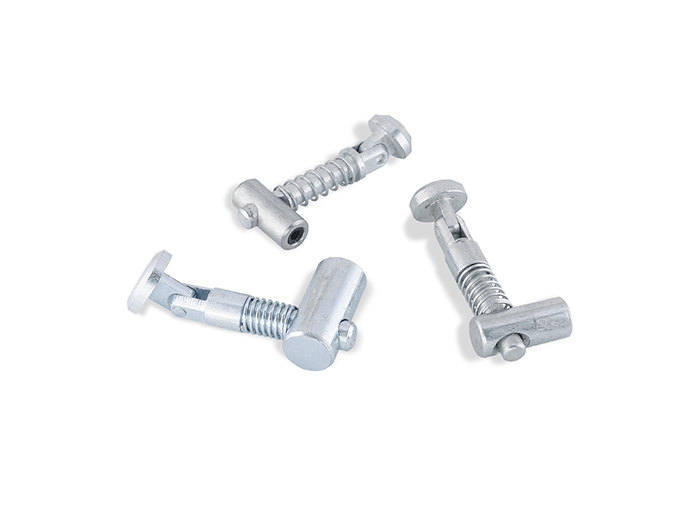

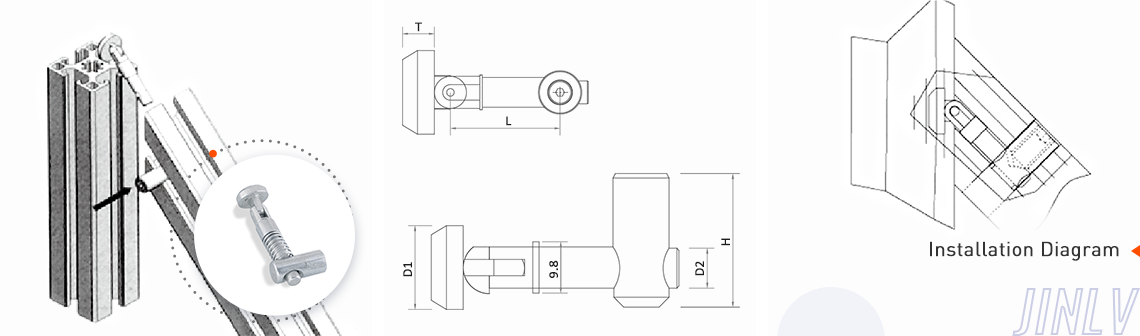

Use for two profiles non-90 angel connect, it is hidden inside the slot when installation, please pay attention how it is connected.
Product Description
| L | D1 | D2 | T | W1 | |
| JL-8-XJ-30 | 34.5 | Φ15 | Φ6.4 | 22.8 | 5 |
| JL-8-XJ-40 | 35 | Φ17 | Φ6.4 | 22.8 | 5.1 |
| JL-10-XJ-45 | 35 | Φ17 | Φ7.9 | 25.1 | 5.2 |
Application
Use for two profiles non-90 angel connect, it is hidden inside the slot when installation, please pay attention how it is connected.
Product Description
| L | D1 | D2 | T | W1 | |
| JL-8-XJ-30 | 34.5 | Φ15 | Φ6.4 | 22.8 | 5 |
| JL-8-XJ-40 | 35 | Φ17 | Φ6.4 | 22.8 | 5.1 |
| JL-10-XJ-45 | 35 | Φ17 | Φ7.9 | 25.1 | 5.2 |
