Application
The 45-degree bracket is formed by cutting the material section from the extruded profile and drilling. The surface is anodized with silver and white (the end face is not oxidized), and the connection strength is high.Good flexibility and general performance, easy to install, mainly used for 45 degree Angle connection of profiles.

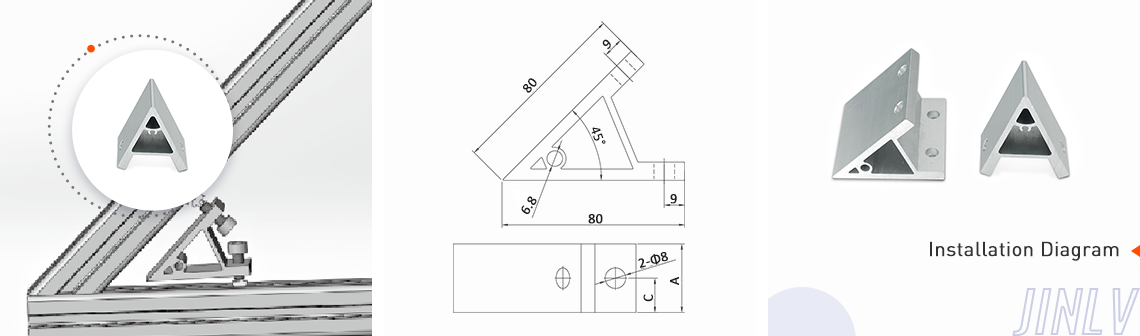

Product Description
NO. | model | A | B | C | Order number |
1 | 2020 | 16 | 5.5 | 8 | 2020-45 degree support |
2 | 2030 | 27 | 6.5 | 13.5 | 3030-45 degree support |
3 | 3535 | 30 | 8.5 | 15 | 3535-45 degree support |
4 | 4040 | 35 | 6.5 | 17.5 | 4040-45 degree support |
5 | 4545 | 40 | 8.5 | 20 | 4545-45 degree support |
6 | 5050 | 45 | 8.5 | 22.5 | 5050-45 degree support |

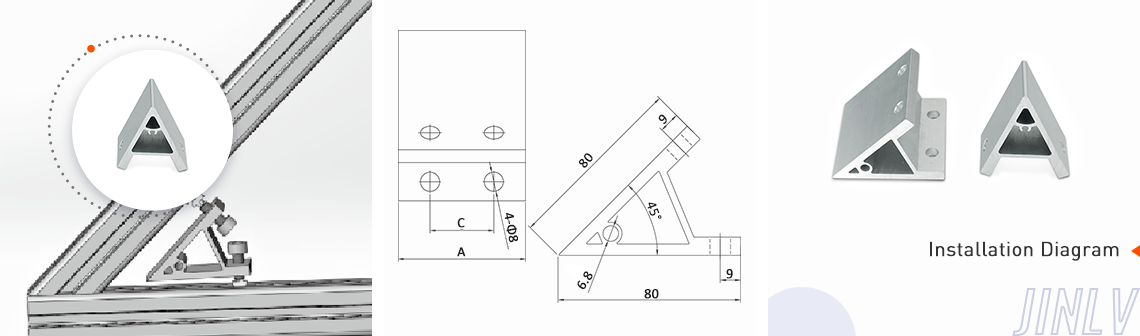

NO. | model | A | B | C | Order number |
1 | 6060 | 55 | 6.5 | 30 | 6060-45degree support |
2 | 8080 | 75 | 6.5 | 40 | 8080-45degree support |
3 | 9090 | 85 | 8.5 | 45 | 9090-45degree support |
4 | 100100 | 95 | 8.5 | 50 | 100100-45degree support |
