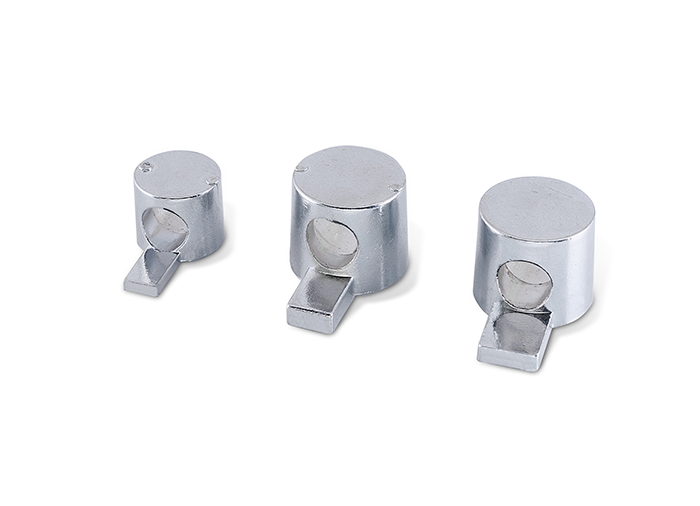

Butt Joint

Jinlv offers over 100+ various standard profiles 20/40/45/80 etc.
Availability:
  • JINLV_01
  • 204055



Application

jinlv_05

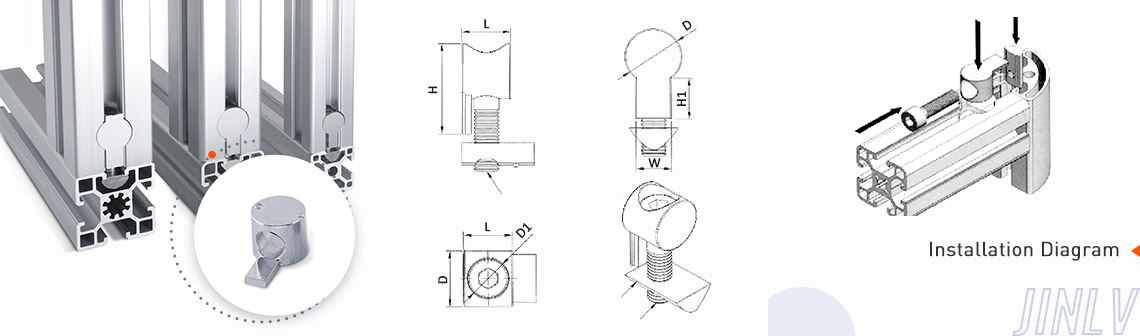

It’s possible to use this bott join in case of cross connection or right angle connection,needs to punch holes at specified location when assemble the profiles,embedding the parts and put the elastic nut into another profiles than lock well the bolt.


Product Description

jinlv_05


Technical Details

jinlv_05

Material Carbon steel(Nickel plated surface )
Order No. 20series 40series
JL-6-NZ10-20 JL-8-NZ20-40
30series 45series
JL-8-NZ16-30 JL-10-NZ20-45
