Joint Bolt

Jinlv offers over 100+ various standard profiles 20/40/45/80 etc.
Availability:
Inquire

  • JINLV_01

  • 204055



Application

jinlv_05

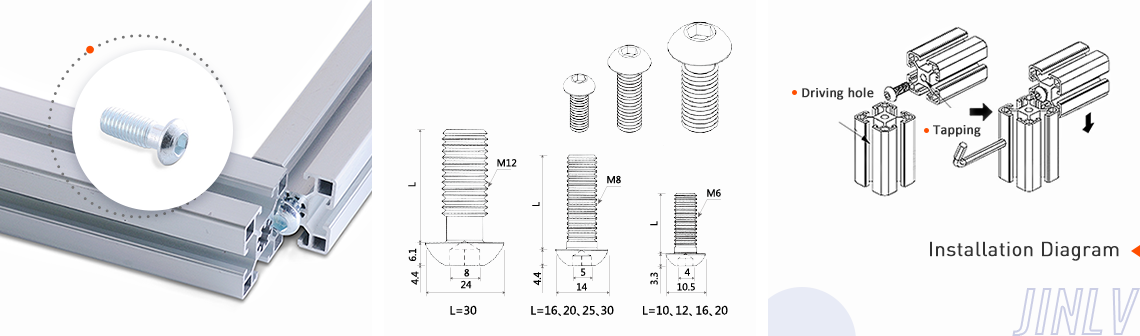

Industrial aluminum profile frame generally use Internal connection way, all use Special half round head bolt, It will need tapping and punching holes at profiles connection before installation.


Product Description

jinlv_05


Technical Details

jinlv_05

Material 12.9 grade high strength alyl steel
Width 6mm slot width 8mm slot width 10mm slot width
Order No. JL-6-BS6X10 JL-8-BS8X12 JL-10-BS12X30
JL-6-BS6X12 JL-8-BS8X16
JL-6-BS6X16 JL-8-BS8X20
JL-6-BS6X20 JL-8-BS8X25

JL-8-BS8X30
