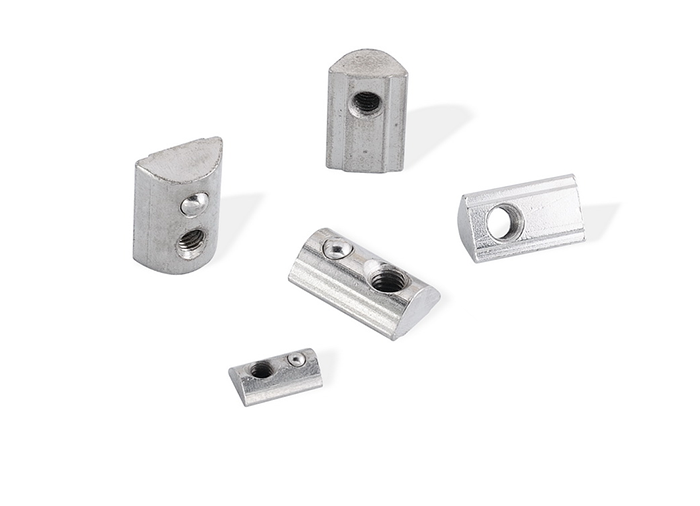

Elastic Nut

Jinlv offers over 100+ various standard profiles 20/40/45/80 etc.
Availability:
Inquire

  • JINLV_01

  • 204055



Application

jinlv_05

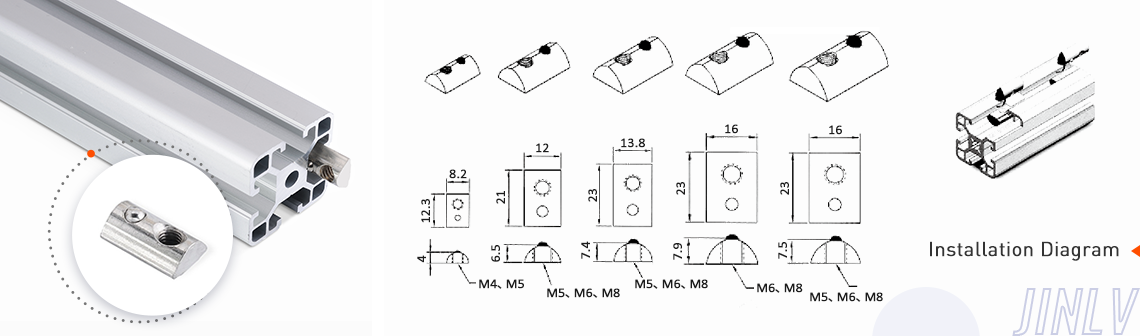

Elastic nut can be fit in any assembly point of aluminum profiles slot. The elastic steel ball on his back can fix well the position, It is one of the mostly use accessory for profiles connection.


Product Description

jinlv_05


Technical Details

jinlv_05

Material Carbon steel（ Zinc coating or Nickel plated surface ）
Order No. 6 slot 20series 8 slot 30/40 series 10 slot 45/50/60 series
JL-6-TXM4 JL-8-TXM4-30 JL-10-TXM6
JL-6-TXM5 JL-8-TXM5-30 JL-10-TXM8

JL-8-TXM6-30 JL-10-TXM6-45L

JL-8-TXM4-40 JL-10-TXM8-45L

JL-8-TXM5-40

JL-8-TXM6-40

JL-8-TXM8-40


Elastic Nut Standard Aluminium Profile and Accessories
