JINLV_01
-
204055
Application

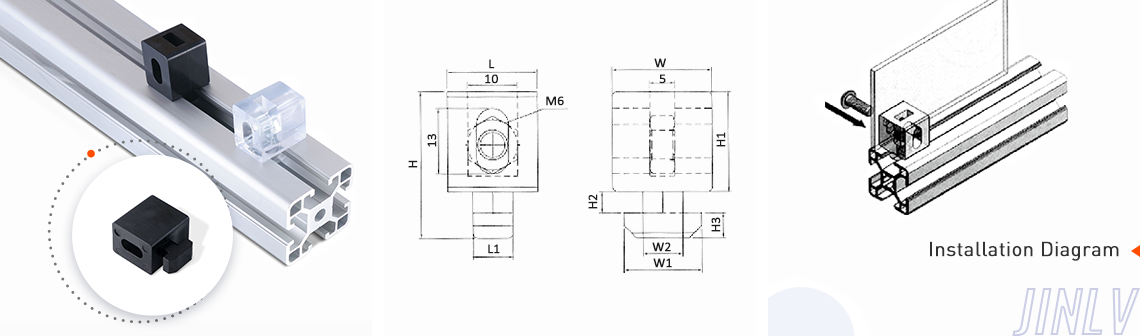

Insert the end of the block directly into the profile， turn 90 degree to fix it to the profile, than install the Plexiglass or other panels, Lock again with bolts, simply installation, easy remove.
Product Description
| L | L1 | W | W1 | W2 | H | H1 | H2 | H3 | |
| JL-8-MB6-30 | 20 | 8 | 17 | 13.8 | 8 | 26.3 | 20.2 | 2.4 | 4.2 |
| JL-8-MB6-40 | 18 | 8.2 | 20 | 15.8 | 8.2 | 32.6 | 22.8 | 5 | 5.8 |
| JL-10-MB6-45 | 18 | 8.2 | 23 | 16.5 | 9.5 | 34 | 22.8 | 6 | 5 |
Application
Insert the end of the block directly into the profile， turn 90 degree to fix it to the profile, than install the Plexiglass or other panels, Lock again with bolts, simply installation, easy remove.
Product Description
| L | L1 | W | W1 | W2 | H | H1 | H2 | H3 | |
| JL-8-MB6-30 | 20 | 8 | 17 | 13.8 | 8 | 26.3 | 20.2 | 2.4 | 4.2 |
| JL-8-MB6-40 | 18 | 8.2 | 20 | 15.8 | 8.2 | 32.6 | 22.8 | 5 | 5.8 |
| JL-10-MB6-45 | 18 | 8.2 | 23 | 16.5 | 9.5 | 34 | 22.8 | 6 | 5 |
