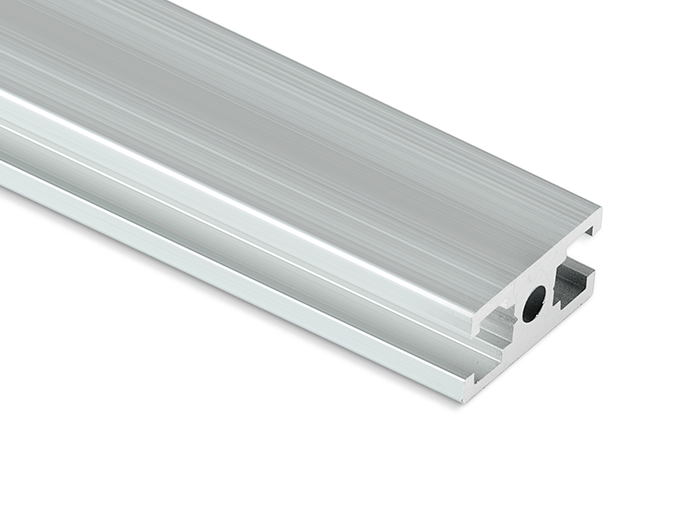

15 Series Industrial aluminum profiles

jinlv_05

15 means the section size is 15mm, Jinlv offers 1530,1560,1590 three kinds of profile with 6mm slot.

The 6 slot profile Suitable for light structure frame combination. Such as hood, instrument rack, display bar and so on, concise and elegant,It’s usually use M6X16 high strength bolts to internal connection.

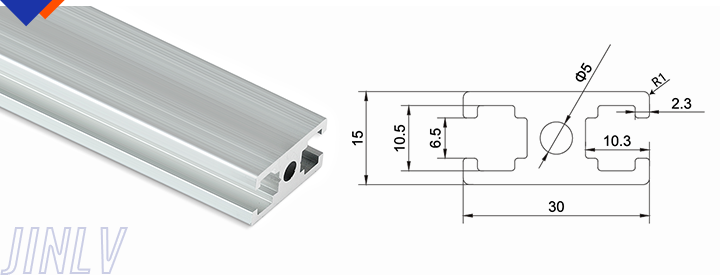

JL-6-1530G

jinlv_05

Material Aluminium(6063-T5)
Weight 0.73kg/M
Length 6.02m can cut in length
Mass of Inertia Lx:2.52cm4   ly:2.52cm4
Section Modulus Zx:1.51cm3  Zy:1.51cm3
Order No. JL-6-1530G

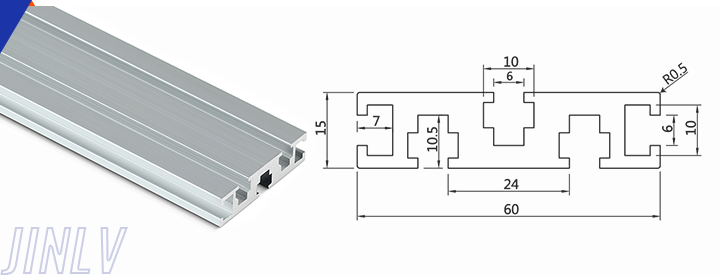

JL-6-1560G

jinlv_05

Material Aluminium(6063-T5)
Weight 1.5kg/M
Length 6.02m can cut in length
Mass of Inertia Lx:2.85cm4   ly:2.85cm4
Section Modulus Zx:1.8cm3  Zy:1.8cm3
Order No. JL-6-1560G


JL-6-1590G

jinlv_05

Material Aluminium(6063-T5)
Weight 2.45kg/M
Length 6.02m can cut in length
Mass of Inertia Lx:2.85cm4   ly:2.85cm4
Section Modulus Zx:1.80cm3  Zy:1.80cm3
Order No. JL-6-1590G
